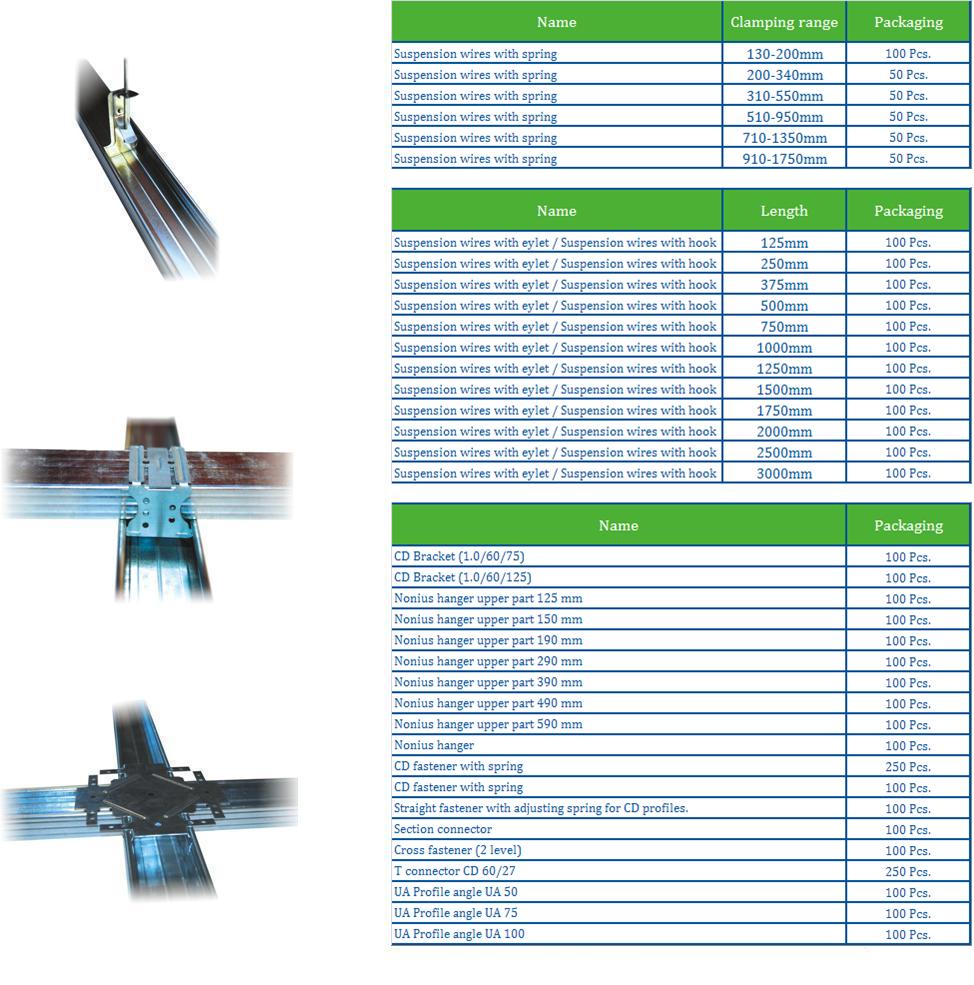

Fixing elements: CD60 Bracket; CD60 profile fastener; CD60 profile cross connector; CD60 profile fastener
with spring; CD60 profile connector; Suspension wire with eyelet
1. Straight hanger for CD 60 profiles (CD bracket)
125mm and 75mm
CD brackets are used for fastening of the CD 60
profiles to the bearing construction. It is possible to
minimize the distance between the bearing and
suspended ceilings with the help of the brackets.
The profile is fastened to the ceiling with the help of
screws. After the profiles are screwed at the project
stage, wall edges of the brackets are turned down or
cut off. The bearing capacity of the bracket is 40kg.
2. CD 60 profile cross fastener (2 level)
CD 60 profile cross fastener is designed for connection
of the CD 60 profiles at different levels in mutually
perpendicular directions. It is offered in a straightened
up form. It is necessary to bend the profile fastener
into the U-type form before assembling.
3. CD 60 profile cross connector (1 level)
CD 60 profile cross fastener is designed for connection
of the CD 60 profiles at one level in mutually
perpendicular directions.
4. CD 60 profile fastener with spring
CD profile fastener is used for fastening of the CD 60
profile suspended ceiling frame to the bearing
construction. The fastener consists of two parts:
CD fastener with a spring and a suspension wire.
The fastener is put into the CD 60 profile and is
fastened additionally with the suspension wire which is
placed into the lower part of the fastener. The bearing
capacity of the fastener is 25kg.
5. CD 60 profile section connector (extender)
CD 60 profile fasteners are used for connection of the
CD 60 profiles.
6. Suspension wire with eyelet
The suspension wire with eyelet with steel rod diameter
d = 4.0 mm, length 250 mm, 500 mm and 1000 mm.
It is designed for hanging of the suspended ceiling
profile construction.
